Product Advantages
-
Long-life battery with 6000 cycles and a 10-year warranty
-
Stack up to 6 battery modules for flexible expansion and easy installation
-
IP65 rated protection suitable for both indoor and outdoor applications
-
Compatible with over 20 inverter brands in the market
-
Art-grade surface spray coating
-
Optional touchscreen display and supporting battery configuration and fault self-diagnosis
Main Product Parameters
-

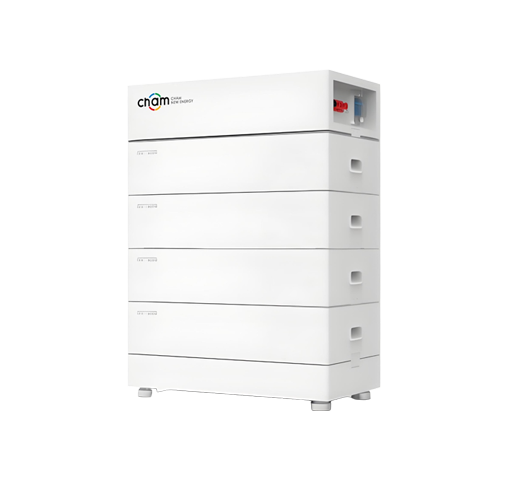

PS-LM05
LiFePO4
-
-
Battery Parameters-Cell Type
LiFePO4
-
Battery Parameters-Nominal Voltage
51.2V
-
Battery Parameters-Nominal Energy
Single Module 5.12kWh
-
Battery Parameters-Usable Energy
Single Module 4.86kWh
-
Battery Parameters-Voltage Range
43.2~56.8V
-
Battery Parameters-Max. Charge/Discharge Current
50A/100A
-
Operation Conditions-Operation Temperature
0℃~50℃
-
Operation Conditions-Storage Temperature
-20℃~50℃
-
Operation Conditions-Degree of Protection
IP65，Indoor，Outdoor
-
Operation Conditions-Weight
Control Box：16.0kg
Battery Box：48.4kg
Plinth：13.8kg -
Operation Conditions-Dimension
Control Box：700*370*163.5mm
Battery Box：700*370*173.5mm
Plinth：700*370*101.5mm -
Operation Conditions-Operation Altitude
≤4000m，(＞2000m Derating)
-
Operation Conditions-Communication Port
RS485，CAN
-
Operation Conditions-External Battery Expansion
1~6 Modules Stackable
-
Operation Conditions-Certification
CB，CE，UN38.3
-
Service Support
Rapid Response After-sales Service
With a dedicated after-sales service team providing 7X24 technical support, users can receive a rapid response in a short period of time, effectively shortening the maintenance cycle.
Professional Team Support
CHAM has been focus on new energy core technology for 20 years, providing customized products and services to customers with its professional pre-sales and R&D teams.
Convenient Service Channel
Extensive sales networks, factories, and after-sales service centers have been strategically deployed in various locations such as Shenzhen, Dongguan, Sichuan, Jiangsu, Indonesia, and Germany.
Customized Design Services
Our professional R&D team focuses on meeting the individual needs of our clients, tailored to create efficient and stable battery solutions that facilitate the successful implementation of projects.
